Project Global Setting

Project settings can have project specific values. Each new project is using studio values defined in default project but these values can be modified or overridden per project.

Default studio values

Projects always use default project values unless they have project override (orage colour). Any changes in default project may affect all existing projects.

Profile filters

Many of the settings are using a concept of Profile filters

You can define multiple profiles to choose from for different contexts. Each filter is evaluated and a profile with filters matching the current context the most, is used.

You can define profile without any filters and use it as default.

Only one or none profile will be returned per context.

All context filters are lists which may contain strings or Regular expressions (RegEx).

• hosts - Host from which publishing was triggered. ["maya", "nuke"]
• families - Main family of processed subset. ["plate", "model"]
• tasks - Currently processed task. ["modeling", "animation"]

Filtering

Filters are optional. In case when multiple profiles match current context, profile with higher number of matched filters has higher priority that profile without filters. (Eg. order of when filter is added doesn't matter, only the precision of matching does.)

Publish plugins

Publish plugins used across all integrations.

Extract Review

Plugin responsible for automatic FFmpeg conversion to variety of formats.

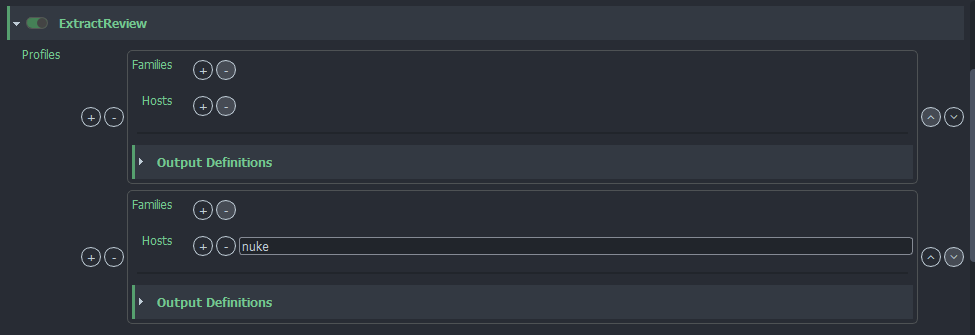

Extract review is using profile filtering to be able render different outputs for different situations.

Applicable context filters: hosts - Host from which publishing was triggered. ["maya", "nuke"]

• families - Main family of processed subset. ["plate", "model"]

Output Definitions

Profile may generate multiple outputs from a single input. Each output must define unique name and output extension (use the extension without a dot e.g. mp4). All other settings of output definition are optional.

• Tags Define what will happen to output.

• FFmpeg arguments These arguments are appended to ffmpeg arguments auto generated by publish plugin. Some of arguments are handled automatically like rescaling or letterboxes.

  • Video filters additional FFmpeg filters that would be defined in -filter:v or -vf command line arguments.
  • Audio filters additional FFmpeg filters that would be defined in -filter:a or -af command line arguments.
  • Input arguments input definition arguments of video or image sequence - this setting has limitations as you have to know what is input.
  • Output arguments other FFmpeg output arguments like codec definition.

• Output width and Output height

  • it is possible to rescale output to specified resolution and keep aspect ratio.
  • If value is set to 0, source resolution will be used.

• Overscan crop

  • Crop input resolution before rescaling.

  • Value is text may have a few variants. Each variant define output size for input size.

  • All values that cause output resolution smaller than 1 pixel are invalid.

  • Value without sign (+/-) in is always explicit and value with sign is relative. Output size for values "200px" and "+200px" are not the same "+200px" will add 200 pixels to source and "200px" will keep only 200px from source. Value of "0", "0px" or "0%" are automatically converted to "+0px" as 0px is invalid output.

  • Cropped value is related to center. It is better to avoid odd numbers if possible.

    Example outputs for input size: 2200px

    String	Output	Description
    	2200px	Empty string keep resolution unchanged.
    50%	1100px	Crop 25% of input width on left and right side.
    300px	300px	Keep 300px in center of input and crop rest on left and right.
    300	300px	Values without units are used as pixels (px).
    +0px	2200px	Keep resolution unchanged.
    0px	2200px	Same as +0px.
    +300px	2500px	Add black pillars of 150px width on left and right side.
    -300px	1900px	Crop 150px on left and right side
    +10%	2420px	Add black pillars of 5% size of input on left and right side.
    -10%	1980px	Crop 5% of input size by on left and right side.
    -10%+	2000px	Input width is 110% of output width.

    Value "-10%+" is a special case which says that input's resolution is bigger by 10% than expected output.

  • It is possible to enter single value for both width and height or combination of two variants for width and height separated with space.

    Example for resolution: 2000px 1000px

    String	Output
    "100px 120px"	2100px 1120px
    "-10% -200px"	1800px 800px
    "-10% -0px"	1800px 1000px

• Overscan color

  • Color of empty area caused by different aspect ratio of input and output.
  • By default is set to black color.

• Letter Box

  • Enabled - Enable letter boxes

  • Ratio - Ratio of letter boxes

  • Type - Letterbox (horizontal bars) or Pillarbox (vertical bars)

  • Fill color - Fill color of boxes (RGBA: 0-255)

  • Line Thickness - Line thickness on the edge of box (set to 0 to turn off)

  • Fill color - Line color on the edge of box (RGBA: 0-255)

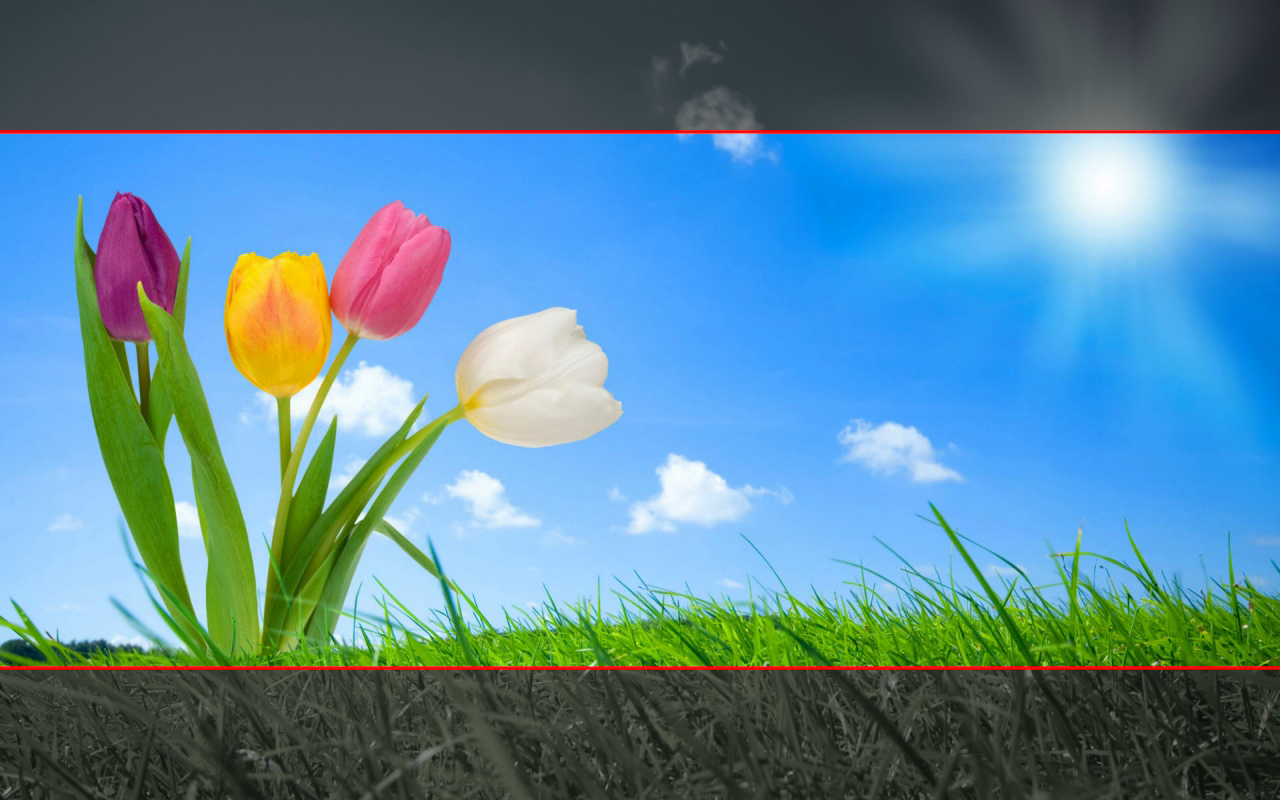

  • Example



• Background color

  • Background color can be used for inputs with possible transparency (e.g. png sequence).
  • Input's without possible alpha channel are ignored all the time (e.g. mov).
  • Background color slows down rendering process.
    • set alpha to 0 to not use this option at all (in most of cases background stays black)
    • other than 0 alpha will draw color as background

• Additional filtering

  • Profile filtering defines which group of output definitions is used but output definitions may require more specific filters on their own.
  • They may filter by subset name (regex can be used) or publish families. Publish families are more complex as are based on knowing code base.
  • Filtering by custom tags -> this is used for targeting to output definitions from other extractors using settings (at this moment only Nuke bake extractor can target using custom tags).
    • Nuke extractor settings path: project_settings/nuke/publish/ExtractReviewDataMov/outputs/baking/add_custom_tags
  • Filtering by input length. Input may be video, sequence or single image. It is possible that .mp4 should be created only when input is video or sequence and to create review .png when input is single frame. In some cases the output should be created even if it's single frame or multi frame input.

IntegrateAssetNew

Saves information for all published subsets into DB, published assets are available for other hosts, tools and tasks after.

Template name profiles

Allows to select anatomy template based on context of subset being published.

For example for render profile you might want to publish and store assets in different location (based on anatomy setting) then for publish profile. Profile filtering is used to select between appropriate template for each context of published subsets.

Applicable context filters:

• hosts - Host from which publishing was triggered. ["maya", "nuke"]

• tasks - Current task. ["modeling", "animation"]

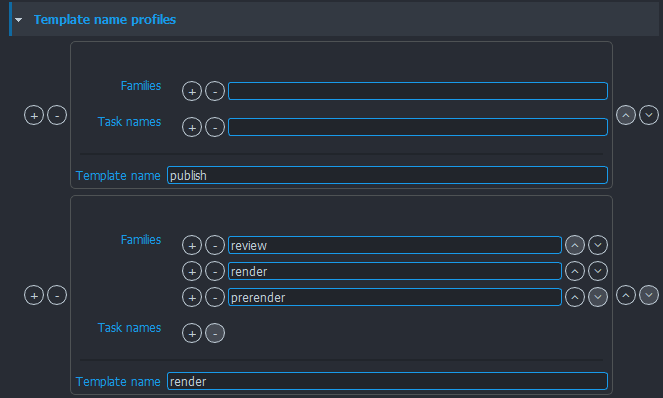

(This image shows use case where render anatomy template is used for subsets of families ['review, 'render', 'prerender'], publish template is chosen for all other.)

Subset grouping profiles

Published subsets might be grouped together for cleaner and easier selection in Loader

Group name is chosen with use of profile filtering

Applicable context filters:

• families - Main family of processed subset. ["plate", "model"]

• hosts - Host from which publishing was triggered. ["maya", "nuke"]

• tasks - Current task. ["modeling", "animation"]

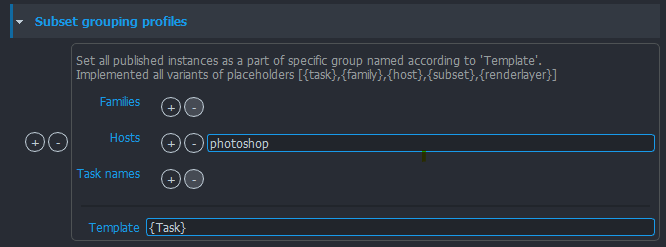

(This image shows use case where only assets published from 'photoshop', for all families for all tasks should be marked as grouped with a capitalized name of Task where they are published from.)

Tools

Settings for OpenPype tools.

Creator

Settings related to Creator tool.

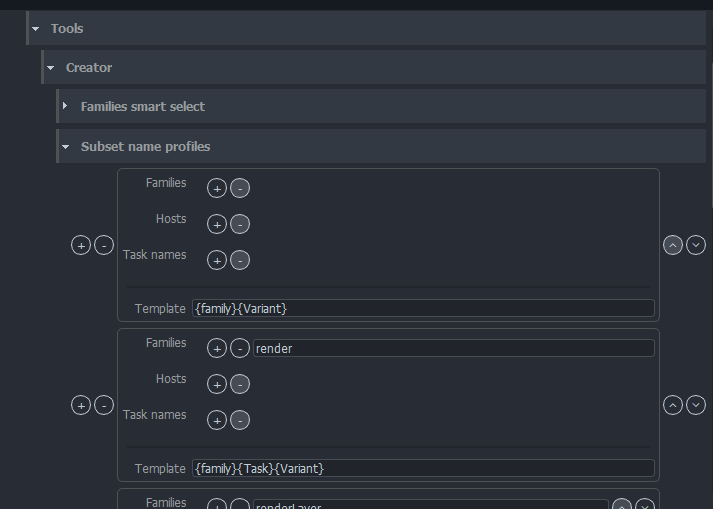

Subset name profiles

Subset name helps to identify published content. More specific name helps with organization and avoid mixing of published content. Subset name is defined using one of templates defined in Subset name profiles settings. The template is filled with context information at the time of creation.

Usage of template is defined by profile filtering using creator's family, host and task name. Profile without filters is used as default template and it is recommend to set default template. If default template is not available "{family}{Task}" is used.

Formatting keys

All templates can contain text and formatting keys family, task and variant e.g. "MyStudio_{family}_{task}" (example - not recommended in production).

Key	Description
family	Creators family
task	Task under which is creation triggered
variant	User input in creator tool

Formatting keys have 3 variants with different letter capitalization.

Task	Key variant	Description	Result
bgAnim	{task}	Keep original value as is.	bgAnim
bgAnim	{Task}	Capitalize first letter of value.	BgAnim
bgAnim	{TASK}	Each letter which be capitalized.	BGANIM

Template may look like "{family}{Task}{Variant}".

Some creators may have other keys as their context may require more information or more specific values. Make sure you've read documentation of host you're using.

Workfiles

All settings related to Workfile tool.

Open last workfile at launch

This feature allows you to define a rule for each task/host or toggle the feature globally to all tasks as they are visible in the picture.
